Description
Efficiency of Sphere-9™ catheter
The Sphere-9™ mapping and ablation catheter provides unparalleled versatility, absolute control, and an optimized workflow for electrophysiologists.
All-in-one: map | ablate | validate
- The novel Sphere-9™ catheter is an all-in-one tool enabling physicians to map, ablate, and validate with a single transeptal, zero-exchange workflow.
- The compressible lattice tip with wide-area focal design and close unipolar mapping capability offers proven safety, efficacy, and superior efficiency1 to promote confidence in procedural outcomes.

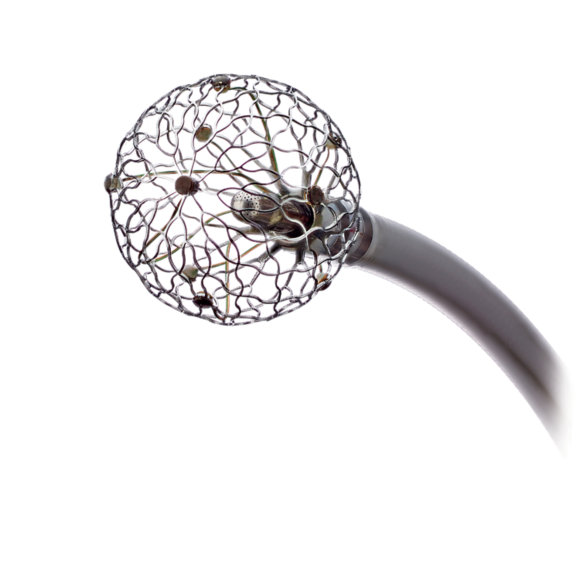

Sphere-9™ catheter at a glance
- 9 mm, compressible lattice ablation electrode
- 9 mini electrodes with integrated thermocouples
- Central reference electrode
- Low flow, central irrigation
- 8 Fr, bi-directional shaft
Map
- Create high-density maps in less than 11 minutes with greater than 5000 points.
- Close-unipolar mapping provides the benefits of bipolar and unipolar electrograms while avoiding the challenges of each
- Maintain wavefront morphology
- Reduce far-field potentials
- Provide high fidelity and discreate EGMs
Wide-area focal lattice ablation electrode
- 10 times larger effective surface area
- Compressible tip for conformability and stability
- THERMOCOOL SMARTTOUCH™ SF
RF and PF ablation options
- 4-5 seconds energy application time
- PF lesions greater than 17 mm wide
- RF lesions greater than19 mm wide
